Product Description:
The Wideband 6 GHz Backhaul 900 mm Deep Dish Antenna (WB6-BH-900) is a high-gain 0.9 m (3 ft) parabolic dish antenna designed for long-range 10–20 km point-to-point wireless backhaul, Fixed Wireless Access, and WISP infrastructure. Operating across the full 4.9–7.2 GHz spectrum, it supports 4.9 GHz public safety, 5 GHz, and 6 GHz deployments, making it ideal for network operators upgrading to high-capacity Wi-Fi 6E and Wi-Fi 7 MLO backhaul links.
Engineered for Ubiquiti Wave MLO5, Wave MLO6, airFiber AF5XHD, and Cambium ePMP Force 300, Force 400c, Force 4600c, PTP 550, and PTP 550E radios, the WB6-BH-900 provides a flexible platform for modern carrier-grade backhaul networks. With 30–34 dBi gain, excellent port isolation, low VSWR, and dual-linear H/V 2x2 MIMO support, it delivers the focused signal strength, low-latency performance, and reliable modulation needed for stable long-distance wireless bridge connections.
The deep-dish parabolic design helps concentrate RF energy while reducing side lobes and improving front-to-back rejection, helping maintain cleaner links in noisy or congested spectrum environments. Built for demanding outdoor deployments, the WB6-BH-900 includes a reinforced side strut for added mechanical stability, a protective radome for improved durability and aerodynamics, and IP67-rated construction for dependable long-term field performance. For WISPs, municipalities, public safety networks, and enterprise wireless operators, the WB6-BH-900 provides a rugged, high-gain, wideband 5 GHz and 6 GHz backhaul solution built for scalable, high-capacity wireless infrastructure.

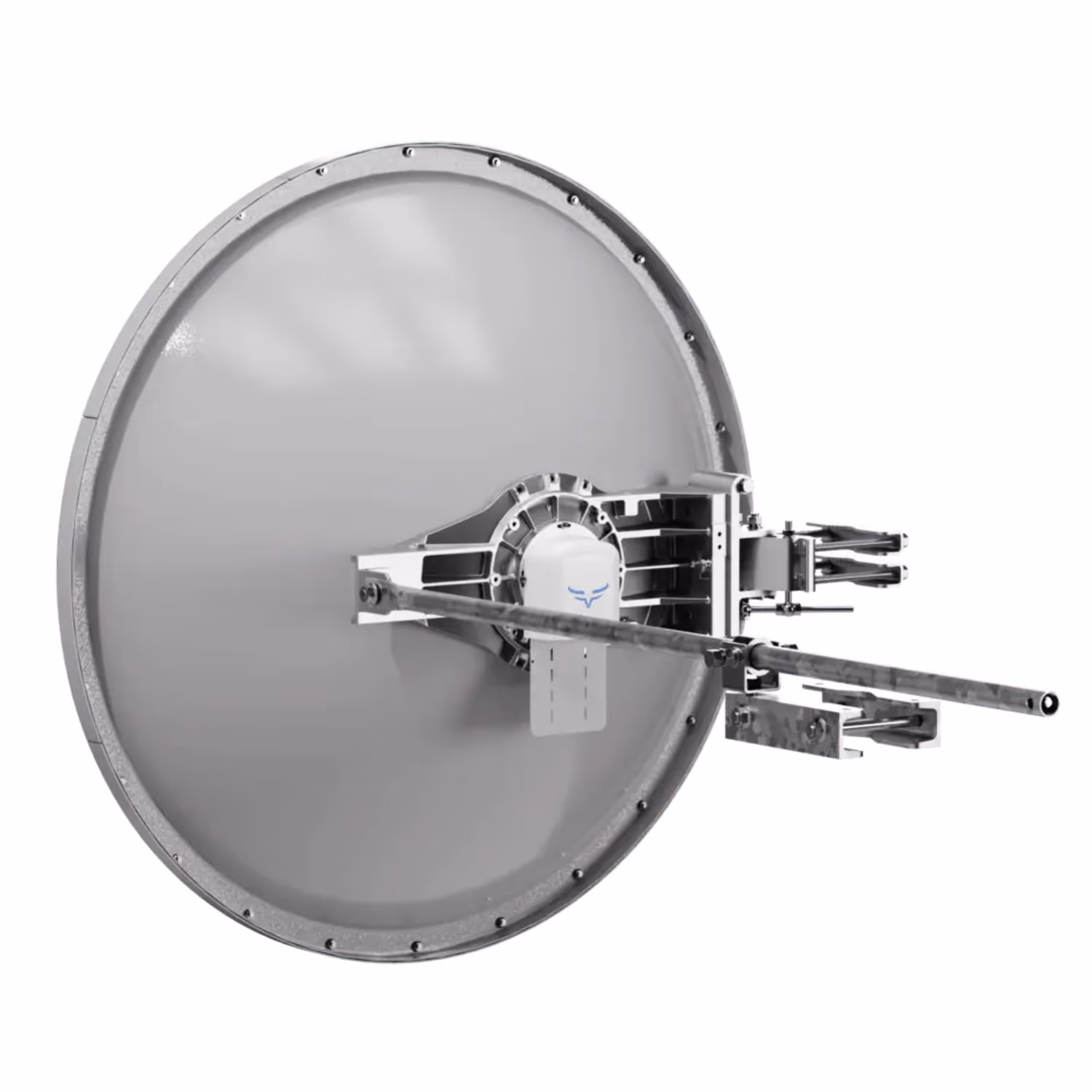

Wideband 6 GHz Backhaul 900 mm (3 ft) Deep Dish Antenna
Model: WB6-BH-900
High-gain 4.9–7.2 GHz 900 mm deep dish backhaul antenna for long-range 10–20 km PTP wireless bridges, Wi-Fi 6E, Wi-Fi 7 MLO, Ubiquiti Wave MLO5/6, Cambium ePMP Force 4600c, and WISP backhaul deployments.
Login for PriceKey Features
- Size: 0.9m (3ft)
- Frequency range: 4.9-7.2 GHz
- Gain: 30-34 dBi
- Port isolation: >35 dB
- VSWR: <1.6
- Front-to-back ratio: 50 dB
- Polarization: Dual-Linear (H/V) 2x2 MIMO
- Connectors: Two RP-SMA female bulkhead (also includes two RP-SMA male jumper cables)
- Weather rating: IP67
- Ubiquiti compatibility: Wave-MLO5, Wave-MLO6, AF5XHD
- Cambium compatibility: ePMP Force 300, 400c, 4600c PTP 550/550E
Documentation
Packaging specification
- Dimensions (L×W×H): 1110×530×1280
- Gross weight: 55.00 kg
High-Performance Wideband 6 GHz Backhaul Antenna for Long-Range PTP Links
The Wideband 6 GHz Backhaul 900 mm Deep Dish Antenna (WB6-BH-900) is a carrier-grade 0.9 m (3 ft) parabolic dish antenna engineered for long-range point-to-point wireless backhaul, Fixed Wireless Access, and high-capacity WISP infrastructure. Designed to operate across the full 4.9–7.2 GHz frequency range, this wideband backhaul antenna supports 4.9 GHz public safety applications, the entire 5 GHz band, and the full 6 GHz band for modern Wi-Fi 6E and Wi-Fi 7 MLO wireless networks. With high gain, excellent electrical efficiency, and a focused directional beam pattern, the WB6-BH-900 is built to deliver strong, stable connectivity over 10–20 km wireless bridge links.
The WB6-BH-900 is ideal for Wireless Internet Service Providers, municipalities, enterprise networks, and network operators that need reliable, low-latency, high-throughput wireless backhaul. Its 30–34 dBi gain helps extend link distance, improve signal strength, and support higher modulation rates in demanding outdoor environments. The antenna’s wideband performance makes it a flexible solution for network upgrades, allowing operators to deploy across 5 GHz and 6 GHz spectrum using one high-performance backhaul antenna platform.
Built for Ubiquiti Wave MLO, Cambium ePMP, and High-Capacity Wireless Bridges
The WB6-BH-900 is designed for compatibility with leading connectorized radios used in modern WISP and enterprise backhaul networks, including Ubiquiti Wave MLO5, Ubiquiti Wave MLO6, Ubiquiti airFiber AF5XHD, Cambium ePMP Force 300, Cambium ePMP Force 400c, Cambium ePMP Force 4600c, Cambium PTP 550, and Cambium PTP 550E radios. With dual-linear H/V polarization and 2x2 MIMO support, this antenna provides the RF performance needed for high-capacity point-to-point links, wireless bridge relays, and long-distance backhaul deployments.
Engineered for Wi-Fi 7 MLO and Wi-Fi 6E radio systems, the WB6-BH-900 helps operators build scalable backhaul networks capable of supporting growing subscriber demand, higher bandwidth applications, and more reliable service delivery. Its low VSWR of <1.6 and port isolation greater than 35 dB help preserve signal quality, reduce losses, and improve link stability. For WISPs deploying Ubiquiti Wave or Cambium ePMP radios, this wideband 6 GHz deep dish antenna provides a strong balance of long-range performance, frequency flexibility, and field-ready durability.
Deep-Dish Noise Rejection, Rugged Construction, and Outdoor Reliability
The deep-dish parabolic design of the WB6-BH-900 helps concentrate RF energy into a narrow, directional beam while minimizing side lobes and improving noise rejection. With a front-to-back ratio of 50 dB, the antenna is well suited for challenging RF environments where interference control and clean link performance are critical. This makes it an excellent choice for congested tower sites, high-capacity WISP backhaul routes, public safety networks, and fixed wireless deployments that require dependable performance in noisy spectrum conditions.

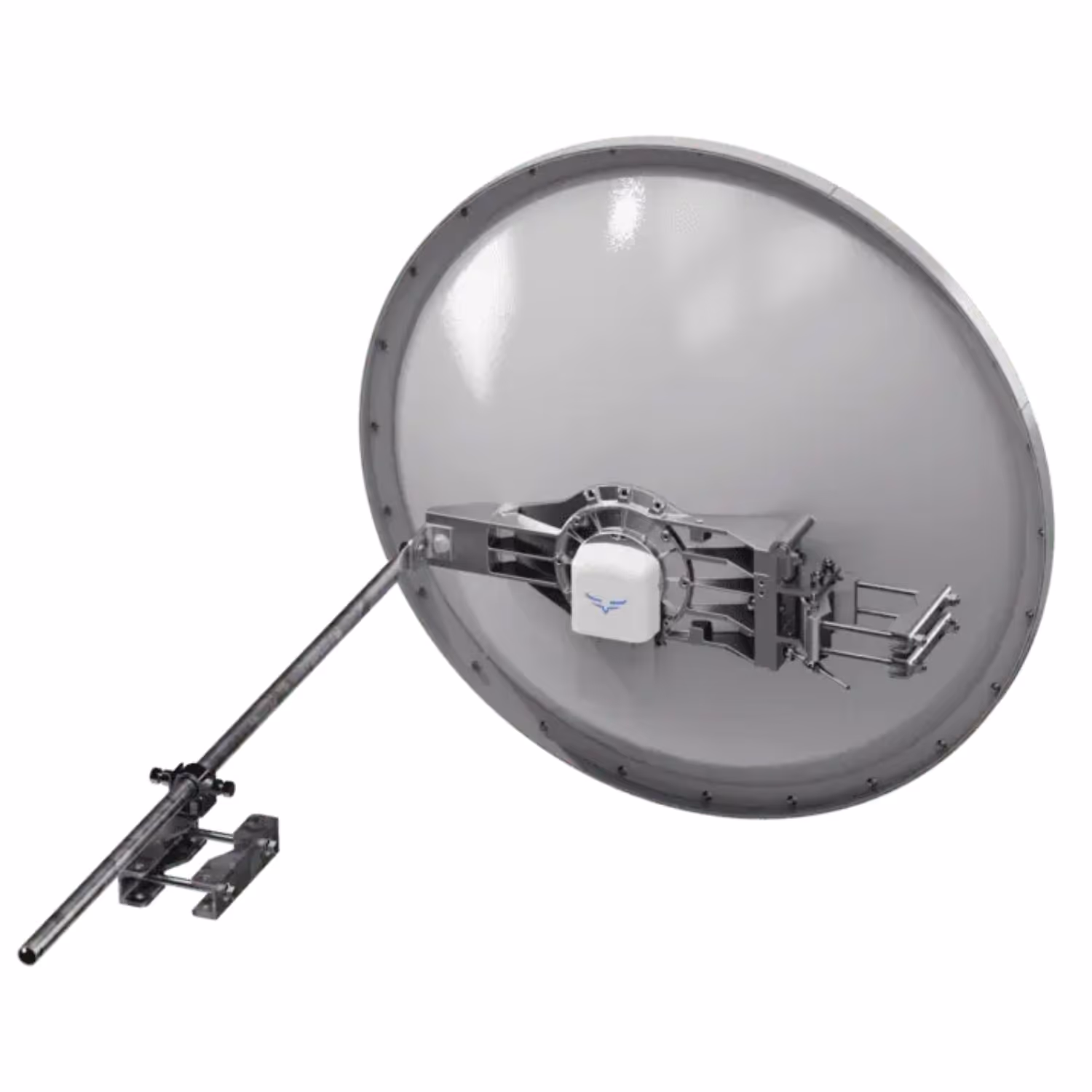

Built for demanding outdoor use, the WB6-BH-900 includes a reinforced side strut for added mechanical stability and a protective radome for improved weather resistance, durability, and aerodynamics. Its IP67-rated construction helps protect the antenna from harsh environmental conditions, supporting long-term reliability while reducing maintenance requirements. For operators looking for a rugged, high-gain, wideband 5 GHz and 6 GHz backhaul antenna, the WB6-BH-900 delivers the performance, durability, and deployment flexibility needed for scalable wireless infrastructure.
Built for WISPs
With ultra-high-capacity throughput and robust noise isolation, this antenna is ideal for wireless ISPs and network operators seeking reliable, scalable backhaul solutions across Wi-Fi 6E and Wi-Fi 7 MLO deployments.
Typical Use Cases for the WB6-BH-900
The WB6-BH-900 is a high-gain 900 mm deep-dish antenna designed primarily for long-distance point-to-point (PTP) wireless links. With 30–34 dBi gain, excellent front-to-back ratio, and support for the full 4.9–7.2 GHz range, it is ideal for WISPs and network operators building high-capacity wireless infrastructure.
Long-Distance WISP Backhaul Links
The most common use case is connecting towers together to transport network traffic between access points, POPs, and aggregation sites. The high gain and narrow beamwidth help maximize throughput over long distances while minimizing interference. Typical link distances are approximately 10–20 km, depending on spectrum conditions and radio selection.
Ubiquiti Wave MLO5 and Wave MLO6 Wireless Bridges
The antenna was specifically designed to pair with Ubiquiti Wave MLO radios, allowing operators to build ultra-high-capacity Wi-Fi 7 backhaul links using both 5 GHz and 6 GHz spectrum.
Cambium ePMP Force 4600c Point-to-Point Links
The WB6-BH-900 is an excellent choice for high-performance Cambium Wi-Fi 6E deployments where operators require maximum link budget, stable modulation rates, and reliable long-distance connectivity.
Rural Broadband Network Transport
WISPs serving rural communities often need to connect distant towers where fiber is unavailable or prohibitively expensive. The WB6-BH-900 provides a cost-effective wireless alternative for transporting gigabits of traffic across a network.
Carrier-Grade Fixed Wireless Infrastructure
The antenna's deep-dish design, high front-to-back ratio, and strong interference rejection make it suitable for critical network infrastructure where reliability and uptime are essential.
High-Capacity Network Expansion
As subscriber counts grow, WISPs often need additional backhaul capacity between tower sites. The WB6-BH-900 supports high-throughput links that can carry traffic from multiple PtMP sectors without becoming a bottleneck.
5 GHz to 6 GHz Migration Projects
Because the antenna covers the entire 4.9–7.2 GHz range, operators can deploy it today with existing 5 GHz radios and later upgrade to Wi-Fi 6E or Wi-Fi 7 radios without replacing the antenna. This protects infrastructure investments and simplifies future network upgrades.
Interference-Prone Environments
The deep-dish reflector provides superior sidelobe suppression and noise rejection compared to many traditional dishes, making it valuable for links operating in congested RF environments where maintaining high modulation rates is critical.
Frequently Asked Questions (FAQ)
Have questions about the WB6-BH-900? This section covers the most common topics from WISPs, network operators, and wireless professionals, including compatibility, link performance, deployment scenarios, installation requirements, and 5 GHz/6 GHz operation. These answers can help you determine whether the WB6-BH-900 is the right antenna for your backhaul network.
What is the WB6-BH-900 designed for?
The WB6-BH-900 is a high-gain deep-dish antenna designed primarily for long-distance point-to-point (PTP) backhaul links. It helps network operators maximize link budget, throughput, and reliability for tower-to-tower wireless connections.
What frequency range does the antenna support?
The WB6-BH-900 supports the full wideband 4.9 GHz to 7.2 GHz range, allowing operation with both 5 GHz and 6 GHz wireless platforms and providing flexibility for future upgrades.
Which radios are compatible with the WB6-BH-900?
The antenna is compatible with many popular connectorized radios, including:
• Ubiquiti Wave MLO5
• Ubiquiti Wave MLO6
• Cambium ePMP Force 4600c
• Mimosa B6x (with appropriate mounting and adapters)
• Other 5 GHz and 6 GHz radios that support external antennas
What link distances can I expect?
Actual distance depends on radio power, channel width, spectrum conditions, and local regulations. In typical WISP deployments, the WB6-BH-900 is commonly used for links ranging from 10 km to 20 km or more when paired with modern high-performance radios.
Why use a 900 mm deep dish instead of a smaller dish?
The larger reflector provides higher antenna gain and a narrower beamwidth, improving signal strength, interference rejection, and overall link reliability. This is particularly beneficial for long-distance and high-capacity backhaul links.
Is the WB6-BH-900 suitable for 6 GHz deployments?
Yes. The antenna was specifically designed to support modern Wi-Fi 6E and Wi-Fi 7 radios operating in the 6 GHz band while remaining compatible with existing 5 GHz equipment.
Can I use this antenna for point-to-multipoint (PtMP) networks?
The WB6-BH-900 is optimized for point-to-point backhaul applications. For PtMP access points, horn antennas or sector antennas are generally the preferred solution because they provide wider coverage.
How does the deep-dish design help performance?
The deep reflector improves front-to-back ratio and sidelobe suppression, helping reduce interference from unwanted directions. This allows radios to maintain cleaner signals and higher modulation rates in congested RF environments.
Is the antenna future-proof?
Yes. Because it covers both 5 GHz and 6 GHz spectrum, operators can deploy the antenna today and upgrade radios later without replacing the antenna, reducing future infrastructure costs.
Does the antenna require precise alignment?
Yes. Like all high-gain backhaul dishes, proper alignment is critical. The narrow beamwidth that delivers excellent performance also requires careful aiming during installation.
Is the WB6-BH-900 suitable for high-interference environments?
Yes. The combination of high gain, narrow beamwidth, and strong sidelobe suppression makes it well-suited for crowded RF environments where noise rejection is important for maintaining stable throughput.
Can I migrate from 5 GHz to 6 GHz without replacing the antenna?
Yes. One of the key advantages of the WB6-BH-900 is its wideband design, allowing operators to transition from legacy 5 GHz systems to newer 6 GHz platforms while keeping the same antenna infrastructure.
