Products
Explore IsoHorns products
IsoHorns still believes in WISPs
IsoHorns believes that internet subscribers prioritize fast and reliable Wi-Fi internet service above all else, regardless of whether it's delivered through fixed wireless or fiber-optic connections. Traditionally, Wireless Internet Service Providers (WISPs) have utilized Wi-Fi frequencies, cost-effective radios, and highly directional antennas to engineer connections to locations that would otherwise be impractical or economically challenging to connect using fiber optics or 5G technology. The free market has demonstrated that WISPs are capable of delivering high-quality internet services in a more cost-effective manner, particularly in rural areas, by using Wi-Fi technology.
Free Air Shipping Worldwide
We Accept
Compatible with radios:
Sustainable self-funded growth
WISPs can achieve profitability and positive cash flow at any scale by utilizing cost-effective radios operating on Wi-Fi frequencies, which are based on Wi-Fi chipsets. However, to fully harness the advantages of affordable outdoor Wi-Fi radios from manufacturers like Ubiquiti, Cambium, Mimosa, MikroTik, and Ligowave, it's essential for WISPs to employ high-quality directional antennas. These antennas play a critical role in achieving optimal internet speeds and in maximizing the capacity and longevity of their outdoor point-to-multipoint (PTMP) wireless networks.
High-quality antennas make a big difference
- Maximize network capacity by employing spatial division and frequency reuse techniques.
- Achieve faster internet speeds by utilizing high modulation rates
- Increase the number of subscribers per access point by optimizing airtime efficiency and minimizing noise interference.
- Enhance subscriber capacity per tower via spatial division, superior modulation rates, and improved airtime efficiency.
- Minimize subscriber churn by improving overall internet speed and reliability.
The sustainable growth of Wireless Internet Service Providers (WISPs) relies on the utilization of high-quality directional antennas, such as those offered by IsoHorns. These antennas empower WISPs to expand their network capacity by implementing spatial division and frequency reuse techniques. Additionally, they boost internet speeds by improving signal-to-noise ratios which leads to higher modulation rates and increased subscriber capacity per access point and tower. Consequently, this also results in reduced subscriber churn, driven by the improved internet speed and reliability experienced by customers.
Objectively better antennas
Antenna parameters are standardized metrics used across the wireless industry to assess the radio frequency (RF) performance of antennas. IsoHorns antennas consistently exhibit superior performance in these objective measurements. When compared using these standardized metrics, IsoHorns antennas not only measure favorably, but frequently surpass competing products in every measured aspect of performance.
Frequency Range
VSWR
Gain
Front-to-back ratio
Isolation
Comparison
Model Number
Frequency Range
Gain
Azimuth Beam Width -6 db
Elevation Beam Width -6 db
Front-to-Back Ratio
Isolation
VSWR Max
Connector
Waveguide

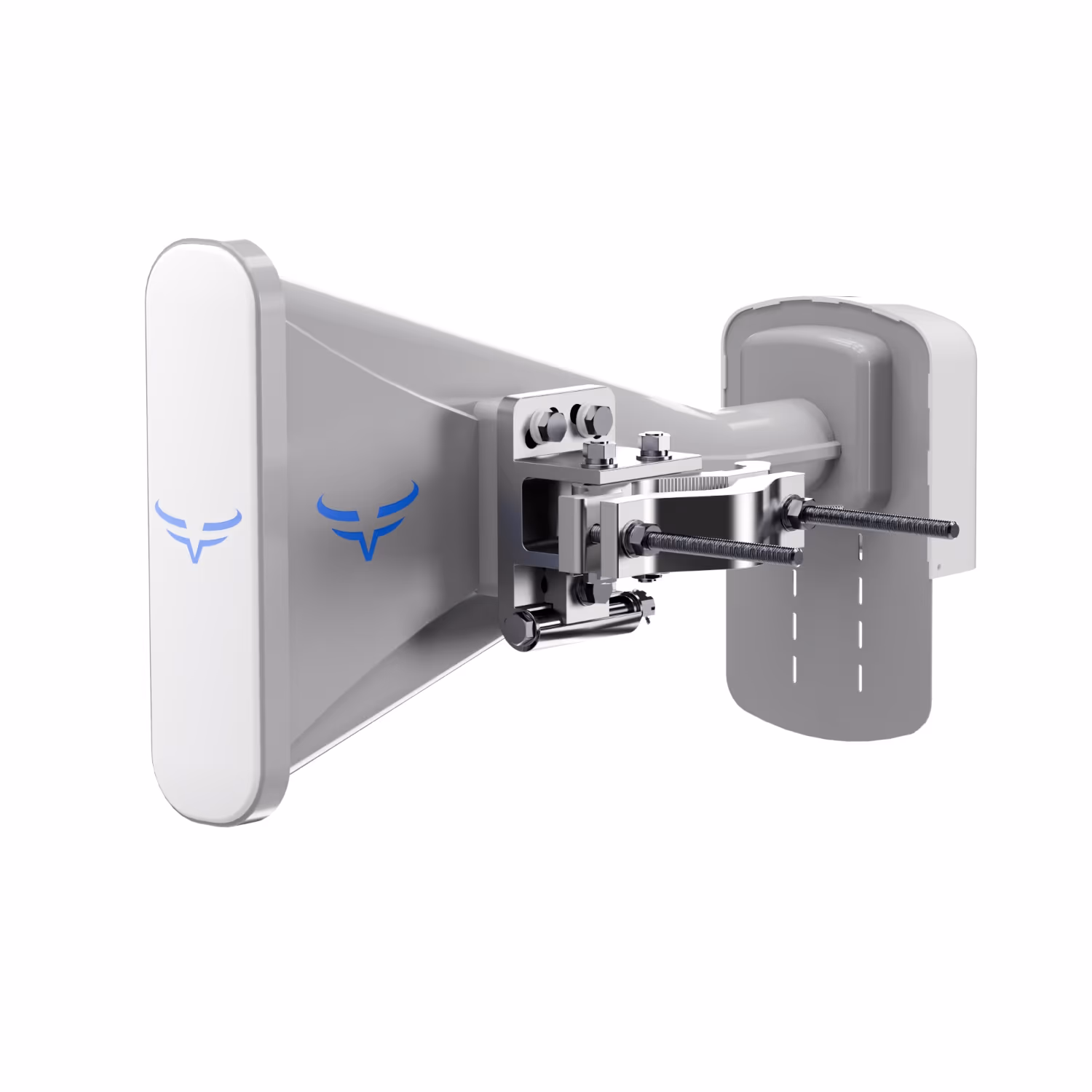

WB6-A90-N
4900-7200 MHz
18 dBi
90°
25°
40 dB
>30 dB
1.6
N Connectors
Included
AH90WB
5170-7125 MHz
15 dBi
90°
25°
-
-
-
Proprietary
Not included
AH90-TP
5180-6000 MHz
16 dBi
90°
25°
30
-
-
Proprietary
Not included
HG3-CC-A90
5180-6000 MHz
16 dBi
90°
25°
30
-
1.9
N Female
Included
Horn-5-90
5150-5800 MHz
13 dBi
90°
45°
-
17 dB
2.0
Proprietary
Included with radio
Future-proof infrastructure investment
Wireless Internet Service Providers (WISPs) will benefit from their investments in wide-band antennas, as these antennas support a broad frequency range from 4.9 to 7.2 GHz. This compatibility allows WISPs to continue using affordable radios while adapting to evolving radio technologies. As radio technology progresses through various stages like Wi-Fi 5 (AC), Wi-Fi 6 (AX), Wi-Fi 6e (AX with 6 GHz), and Wi-Fi 7 (which features multi-link operation using both 5 GHz and 6 GHz channels simultaneously), WISPs can maintain their infrastructure without needing frequent upgrades. This is because high-quality wide-band antennas operating from 4.9 to 7.2 GHz can accommodate these technological advancements.
WISPs can stay competitive
Wireless Internet Service Providers (WISPs) can maintain a competitive edge by offering high-speed, high-quality connections with their current radios. As new radio technologies emerge, WISPs can seamlessly adapt, ensuring they continue to deliver top-tier service.
The Last Mile can be Wi-Fi too
Most subscribers are unaware of the specific technology used to bring internet service to their location as their direct interaction is typically with a Wi-Fi connection. This means that if the final connection to the user is through Wi-Fi, the 'last mile' of service delivery - the final segment of the network connection to the customer's location - can also effectively be Wi-Fi-based.
Field tested results
In side-by-side comparisons using 5.7 GHz, the IsoHorns wideband 6 GHz asymmetrical 90° horn antennas (WB6-A90) outperform RF elements 90º asymmetrical beam TwistPort horn antennas (AH90-TP) with an average of 40% faster download speeds in 5.7 GHz.
Upgrading point-to-multipoint (PTMP) wireless infrastructure
While fixed wireless competitors gain unfair advantages from market distortions and government favoritism, IsoHorns still believes in the WISP business model. We are committed to maintaining the competitive edge for WISPs by providing high-quality unlicensed 5 and 6 GHz wireless solutions at affordable prices, so WISP businesses can continue to grow profitably.
IsoHorns is built for WISPs and our solutions allow WISPs to maintain profitability while investing in their business and communities. With IsoHorns, WISP installers will be more successful by improving signal levels and modulation rates during site surveys so more new subscribers will meet the minimum signal requirements for installations. IsoHorns asymmetrical sectors extend the distance of your service area by offering higher gain antennas while reducing the noise through spatial division.
By using inexpensive radios combined with highly directional antennas, WISP are uniquely capable of sustainably connecting communities where other providers can't.
WISPs deploy infrastructure quickly
Offer professional installation
Individually engineer fixed connections
Achieve fast return on investment with new subscribers
They provide low latency, high-speed, and reliable internet service
Their focus is on building durable infrastructure with lasting value
Why IsoHorns?
IsoHorns is the perfect alternative to RF Elements 5 GHz horn antennas because IsoHorns wideband 6 GHz horn antennas outperform RF Elements narrowband 5 GHz horn antennas in their native 5 GHz frequencies. If you install RF elements narrowband 5 GHz horn antennas today then you will likely need to replace them with 6 GHz horn antennas as the industry shifts to 6 GHz. IsoHorns' wideband horn antennas provide the flexibility for future radio upgrades as technology evolves. Only IsoHorns antennas outperform other horn antenna manufacturers on both 5 and 6 GHz!
We take pride in being the world’s first manufacturer of premium point-to-multipoint (PTMP) wideband 6 GHz horn antennas covering the entire 4.9 to 7.2 GHz range, including the entire 6 GHz band. Our horn antennas are designed with industry leading best Voltage Standing Wave Ratio (VSWR), a crucial performance indicator measuring the efficiency of power transfer between the antenna and the transmission line. Experience unparalleled radio system performance with our industry-leading 5 & 6 GHz horn antennas.
IsoHorns Advantages
IsoHorns in 5 GHz
- Reduce customer cancellations
- Grow faster with more successfull installation
- More revenue with high-speed plans
- Higher capacity for more subscribers
IsoHorns in 6 GHz
- Reduce customer cancellations
- More revenue with gigabit plans
- Higher capacity for more subscribers
- Defend your markets from overbuilds
Built for Ubiquiti, Cambium, MikroTik, Mimosa, Ligowave, and Radwin PTMP access points
IsoHorns understands the importance of easy integration in your wireless network. That's why our horn antennas include RP-SMA male cables and are designed to be universally compatible with a wide range of radio devices. Our antennas ensure optimal performance with the following radios
UISP Wave MLO 6
UISP Wave MLO 5
UISP Wave AP Gen2
UISP LTU Rocket
UISP airMAX Rocket 5AC Lite
BaseStation
UISP airMAX Rocket Prism 5AC Radio
UISP airMAX Rocket M5 BaseStation
ePMP 4600 6 GHz Fixed Wireless Access Point
ePMP Force 4600C
ePMP 1000 Connectorized Radio
ePMP 2000 Connectorized Radio
ePMP 3000 Connectorized Radio
ePMP 3000L Connectorized Radio
ePMP 4500L 5 GHz 2x2 Access Point
PMP 450 MicroPoP Fixed Wireless Access Point Connectorized
5000 HPMP SU-AIR 500 ODU Subscriber Unit Radio
Connectorized for External Antenna
RW5000 HBS-Pro 5200 Series Base Station
BaseBox 5 300Mbps Wireless Access Point
NetMetal 5
NetBox 5
BaseBox 5
LigoWav
LigoBASE 5-N
LigoSU 5-N
A5c
Quality and Compatibility
Our antennas are crafted to meet the highest standards of quality and performance. Whether you are setting up a new network or upgrading an existing one, isoHorns ensures that you get the best in terms of both compatibility and reliability.
Discover the IsoHorns Advantage
At IsoHorns, our focus is on superior horn antennas that cater to the unique needs of WISP and fixed wireless operators. Our team of experts works tirelessly to develop cutting-edge designs that maximize performance while maintaining cost-effectiveness with large quantity bulk orders. Our commitment to quality ensures that every IsoHorns antenna is the best in the wireless communications industry.
Explore our extensive product range, including:
Don't let outdated 5 GHz antennas hold you back. Upgrade to IsoHorns 5 & 6 GHz horn antennas and experience the difference in network performance, reliability, and customer satisfaction. Contact our sales team today to discuss your specific requirements and learn more about how IsoHorns can help you take your WISP business to the next level.
IsoHornsEmpowering WISPs with High-Performance
Empowering WISPs with High-Performance
Horn Antennas for Unrivaled Network Success.
5 & 6 GHz Asymmetrical Horn Antennas
Revolutionizing wireless communication
Experience the power of IsoHorn asymmetrical horn antennas, delivering an unparalleled asymmetrical beam shape that revolutionizes wireless communication. Our cutting-edge asymmetrical horn antennas offer exceptional noise rejection, remarkable network scalability, and a significant boost in throughput. With their distinctive beam shape, increased antenna gain, and outstanding noise immunity, these antennas are the perfect complement to our highly acclaimed symmetrical horn antennas. Trust IsoHorn to elevate your wireless connectivity to new heights of performance and reliability!
Efficient wireless coverage
Discover the groundbreaking IsoHorns asymmetrical horn antennas, featuring a truly unique beam shape that sets them apart from the competition. With an elliptical cross-section in the bore sight, our antennas provide a wide azimuth and a narrow elevation plane, delivering unparalleled coverage in various deployment scenarios. Trust IsoHorns to elevate your wireless connectivity experience, harnessing the power of asymmetrical beam shaping to achieve exceptional performance and coverage like never before!
Upgrade your tower PtMP antenna infrastructure with cutting-edge horn antennas designed to support the full 5 GHz and 6 GHz frequency ranges, spanning from 4.9 GHz to 7.2 GHz. These advanced horn antennas offer optimal performance, versatility, and long-range wireless connectivity for a wide variety of applications, including WISP networks, wireless fronthaul, and rural broadband access
Key features of these state-of-the-art horn antennas include:
- Wide frequency range support (4.9 GHz to 7.2 GHz)
- High isolation and low side lobes for reduced interference
- Superior beamforming capabilities for enhanced signal quality
- Exceptional durability and weather resistance for outdoor use
- Improved network capacity and scalability for growing demands
- Seamless integration with existing wireless infrastructure
- Enhanced spectral efficiency for higher throughput and lower latency
- Easy installation and maintenance for cost-effective deployment
- Flexible mounting options for tower, rooftop, or pole installations
- Future-proof design for compatibility with next-generation wireless technologies
Invest in these innovative 5 GHz and 6 GHz horn antennas to stay ahead of the competition and meet the growing needs of your wireless network. By embracing the latest antenna technology, you can provide reliable, high-speed internet connectivity to a diverse range of clients, from residential users to businesses and enterprises.
