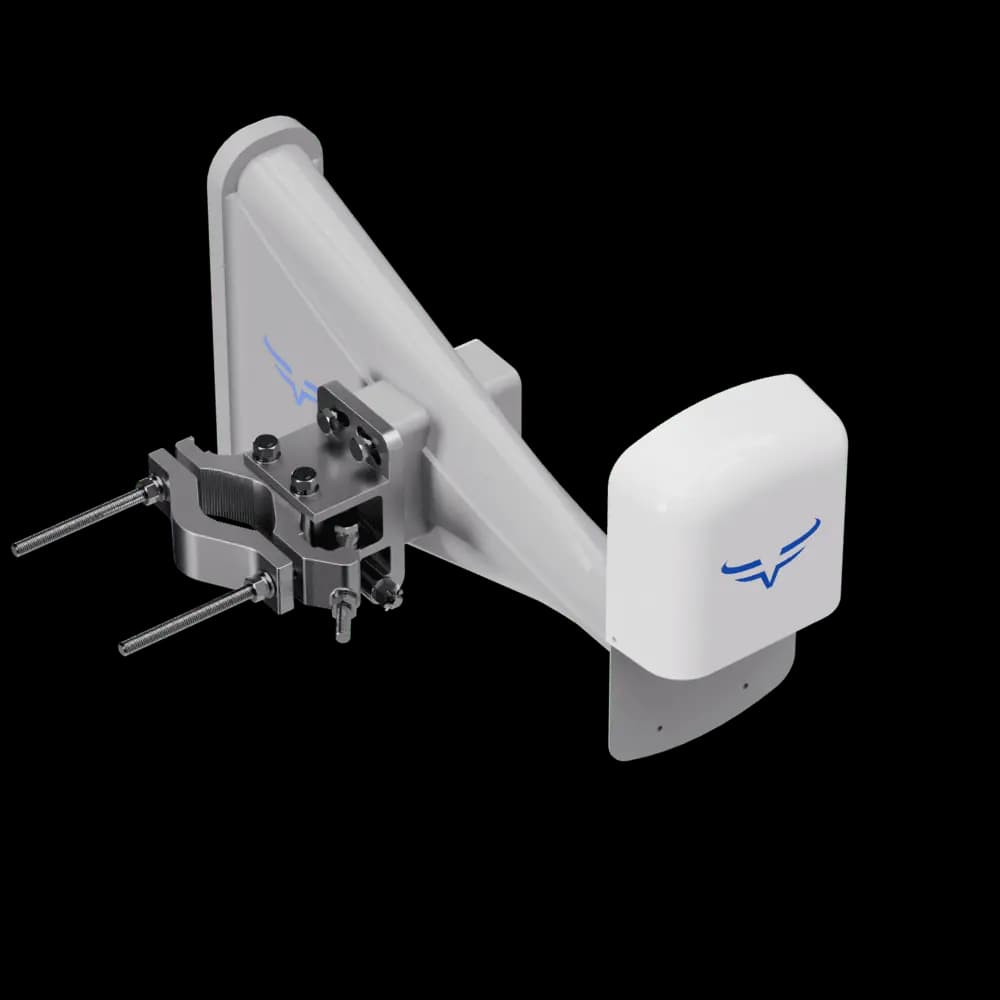

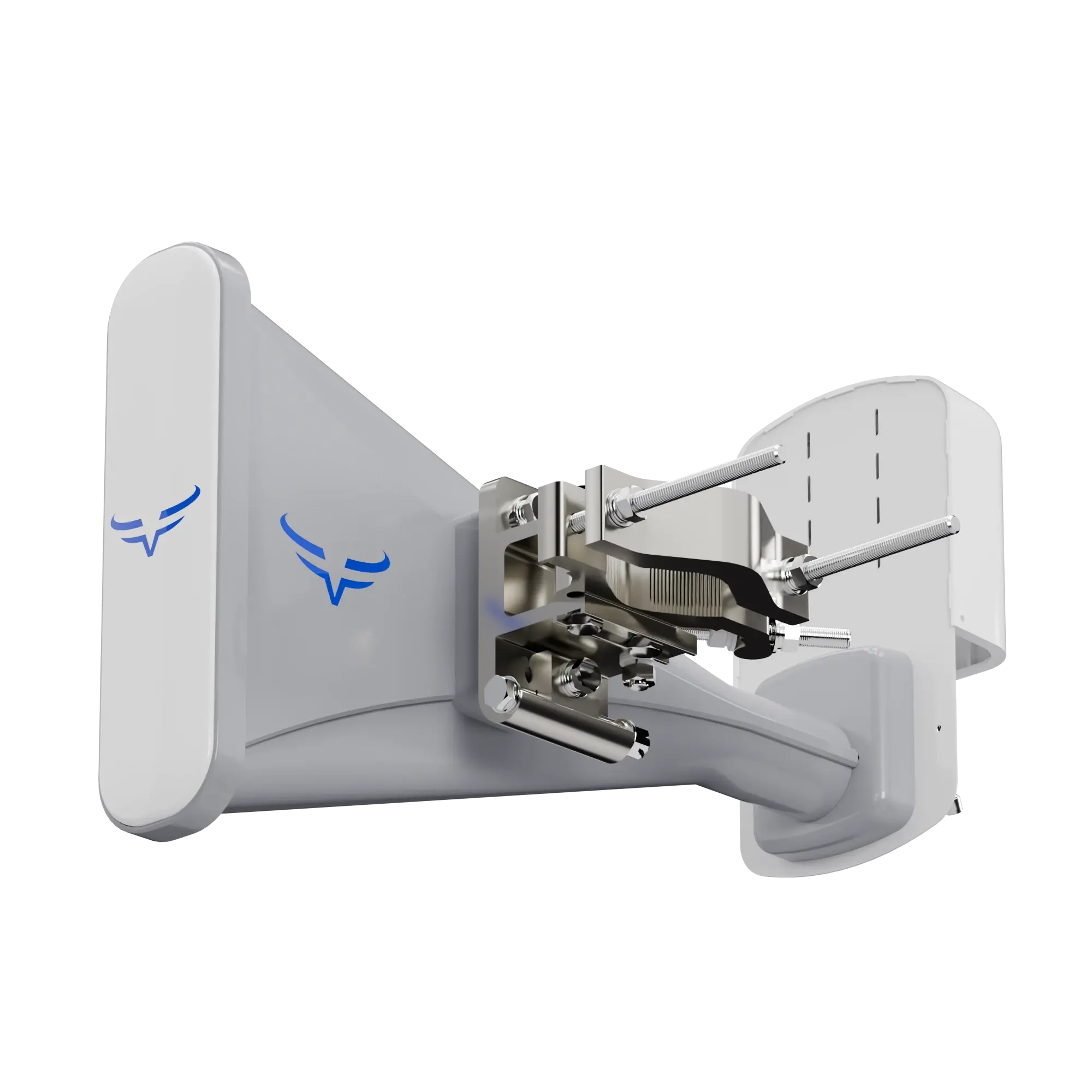

IsoHorns Wideband 6 GHz Asymmetrical 90° Horn Antenna with N Connectors

Boost Signal Strength, Enhance Performance, Future-Proof Your WISP Network

30 degree horn antenna
Airplane iconFree Air Shipping Worldwide

We Accept

visa card
visa card
visa card
wb6 page bg img

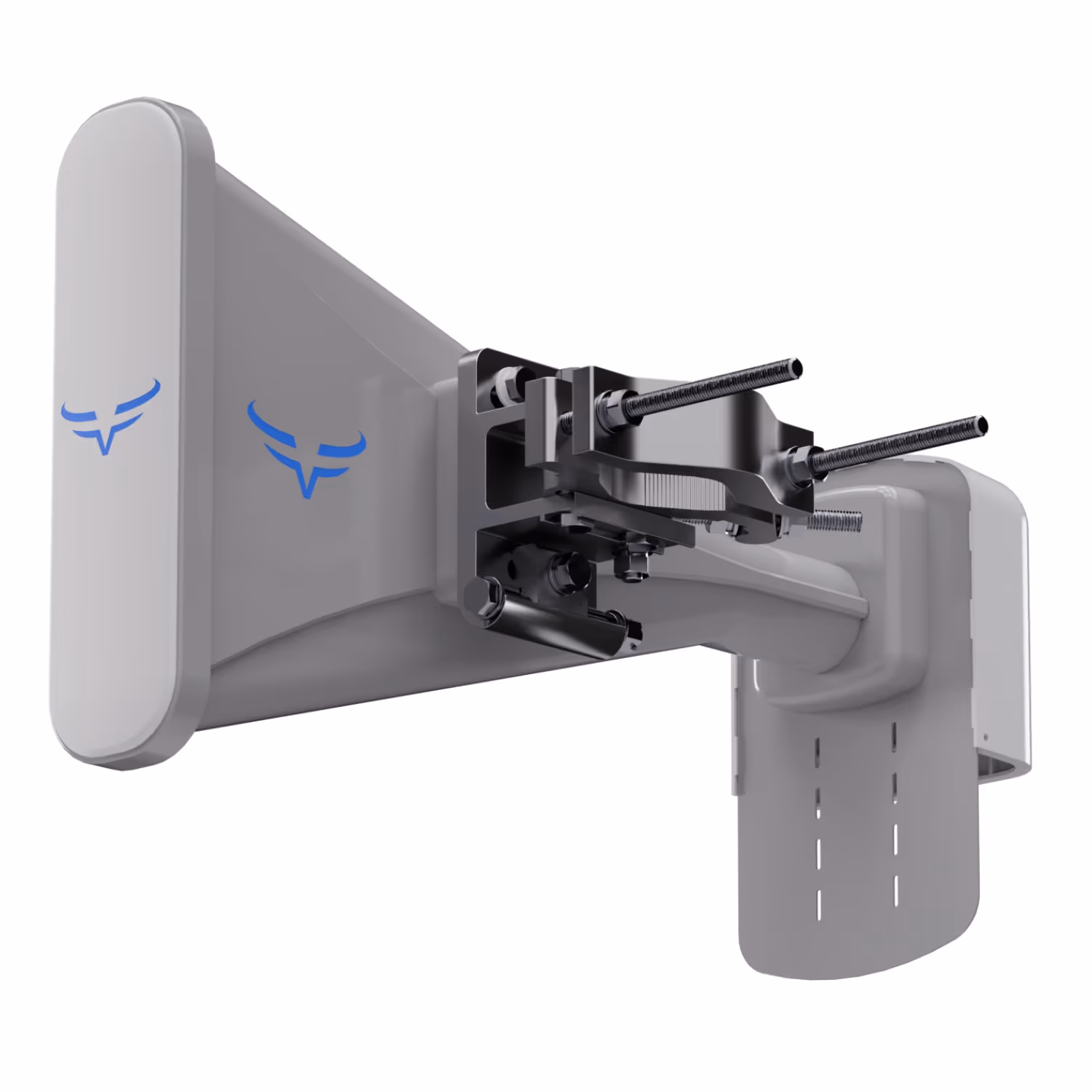

IsoHorns Wideband 6 GHz

Asymmetrical 90° Horn Antenna (WB6-A90-N)

Higher Success Rates

Boosts signal strength by ~4 dB, enhancing modulation rates by 40%

Improved Satisfaction

Shifting to 6 GHz enhances 5 GHz user experience

Reliable Performance

Better signal-to-noise ratios for higher retention

Competitive Edge

40% faster average download speeds

Wi-Fi 7 MLO Ready

Fully supports the entire 6 GHz band, ready for Wi-Fi 6e AX and Wi-Fi 7 BE technologies.

Why choose IsoHorns Wideband 6 GHz Asymmetrical 90° Horn Antenna with N Connectors?

Wideband versatility

The WB6-A90-N is distinguished by its exceptional frequency range and RF performance, seamlessly operating from 4.9 GHz to 7.2 GHz. This wide spectrum covers both the traditional 5 GHz band, prevalent in today's wireless networks, and the newer 6 GHz band. For WISPs, the WB6-A90-N offers not only a solution for present-day requirements but also a future-proof investment, equipped to support evolving wireless technologies.

Industry leading 5 GHz band performance

Designed for versatility, the WB6-A90-N delivers exceptional performance in the 5 GHz band without sacrificing quality. It outperforms many standard 5 GHz antennas, making it ideal for current Wi-Fi networks and applications. This translates to enhanced signal quality and reliability for your existing network infrastructure, with the added benefit of improved range and throughput potential.

Outshines competitors

In head-to-head comparisons, the WB6-A90-N goes beyond the standards set by competitors like RF Elements, especially in the 5 GHz range. This isn't just about outperforming others; it's about providing WISPs with a reliable, high-quality solution that makes their services faster and more reliable and increases overall subscriber satisfaction.. With the WB6-A90-N, WISPs get a level of performance that sets new benchmarks in antenna technology.

Practical for WISPs

For Wireless Internet Service Providers (WISPs), the WB6-A90-N is more than just an antenna; it’s a powerful, adaptable tool designed to optimize network performance today while being ready for tomorrow’s demands. Its wide operating range supports a variety of applications, including future transitions to the 6 GHz band. At the same time, its exceptional performance in the 5 GHz band enhances your current network without requiring immediate upgrades or overhauls.

Comparison

Model Number

Frequency Range

Gain

Azimuth Beam Width -6 db

Elevation Beam Width -6 db

Front-to-Back Ratio

Isolation

VSWR Max

Connector

Waveguide

tableOneImg

WB6-A90-N

4900-7200 MHz

18 dBi

90°

25°

40 dB

>30 dB

1.6

N Connectors

Included

tableOneImg

AH90WB

5170-7125 MHz

15 dBi

90°

25°

-

-

-

Proprietary

Not included

tableOneImg

AH90-TP

5180-6000 MHz

16 dBi

90°

25°

30

-

-

Proprietary

Not included

tableOneImg

HG3-CC-A90

5180-6000 MHz

16 dBi

90°

25°

30

-

1.9

N Female

Included

tableOneImg

Horn-5-90

5150-5800 MHz

13 dBi

90°

45°

-

17 dB

2.0

Proprietary

Included with radio

IsoHorns Wideband 6 GHz Asymmetrical 90° Horn Antenna

Upgrading and optimizing PTMP wireless networks is essential for WISPs to maintain a competitive edge, both now and in the future.

Superior Performance

4 dB improvement in average station signal strength, outperforming narrowband 5 GHz RF Elements horns.

Increased Speeds

Boost average subscriber download speeds by approximately 40%.

Enhanced Signal-to-Noise Ratio

Substantially improved ratios lead to more reliable networks and higher subscriber satisfaction.

Future-Proof Technology

Full support for the entire 6 GHz band, compatible with upcoming Wi-Fi 6e AX and Wi-Fi 7 BE technologies.

World's Only Premium 6 GHz Horn for WISPs

  • Specifically designed for WISPs and fixed wireless (FWA) service providers
  • Ideal for unlicensed outdoor wireless point-to-multipoint (PTMP) operations
  • Frequency range: 4.9 to 7.2 GHz
  • Ensures uniform coverage and consistent signal distribution
  • Perfect for installation atop WISP towers

Optimized Coverage with Asymmetrical Design

Our Wideband 6 GHz Asymmetrical 90° Horn Antenna with N connectors is designed for uniform coverage within a specific sector. Unlike conventional antennas, it provides a 90-degree coverage angle with consistent signal strength across the entire sector, ensuring reliable performance throughout the designated area. Its design minimizes side lobes, reducing interference outside the targeted sector and delivering a clear, well-defined coverage area. This makes it ideal for WISP operations, where uniform signal distribution and reliability across the sector are critical.

Simplified Spatial Engineering for WISPs

Spatial division is crucial for WISPs, requiring careful planning and placement of network components to optimize coverage, capacity, and performance in a specific area. Key factors include antenna type, placement, signal strength, and interference. Our asymmetrical horn antenna simplifies this process. With its predictable signal distribution and well-defined coverage boundaries, it enables precise deployment, minimizing interference with neighboring networks and ensuring reliable service to customers. This makes it an ideal solution for improving network efficiency and performance.

Key Advantages for WISP Networks

The Wideband 6 GHz Asymmetrical 90° Horn Antenna with N Connectors isn’t just another piece of equipment; it’s a real advantage for WISPs. It spreads the signal evenly and has clear coverage boundaries, making it easier to plan and set up your network. With this antenna, you’ll know exactly where the signal will be strong and where it won’t reach, helping you boost performance and keep customers happy. In crowded wireless areas, having this level of control helps reduce interference and ensures reliable service. It’s a smart choice for building a more efficient WISP network.

High Performance Antenna Parameters

Antenna Gain

Beam focus

For WISPs, high antenna gain allows them to focus signal energy in specific areas, maximizing coverage and reducing interference in undesired directions. This targeted approach enhances network efficiency, enabling faster data transmission and more reliable service. By concentrating the signal where it's most needed, service providers can optimize network performance and scalability, ensuring consistent coverage and speeds even as they expand their service area or connect more subscribers.

Front-to-Back Ratio

Side lobe measurement

From a service provider's perspective, a high front-to-back ratio minimizes interference from unwanted signals coming from behind the antenna, allowing for cleaner, more efficient signal transmission. This improves network reliability by reducing noise and errors, which in turn leads to fewer service disruptions and higher throughput. By limiting interference, WISPs can maintain consistent performance across a growing number of subscribers, making it easier to scale the network without sacrificing quality or speed.

VSWR (Voltage Standing Wave Ratio)

Antenna signal efficiency

For service providers, maintaining a low VSWR is essential for efficient signal transmission. A lower VSWR reduces power loss, ensuring that more of the signal reaches its destination without reflection. This means fewer errors and retransmissions, resulting in better overall network performance. As WISPs scale their networks, a low VSWR helps sustain high speeds and reliable connections across multiple users, ensuring the infrastructure remains stable as capacity demands increase.

Port Isolation

Isolation of signals between ports.

High port isolation is crucial for service providers as it reduces interference between antenna ports, ensuring a cleaner signal and higher modulation rates. WISPs can deliver higher throughput to more subscribers, which is particularly important as the network scales and the number of connected devices increases. High port isolation, along with higher modulation rates and faster speeds, allows WISPs to expand their network infrastructure while maintaining service quality and speeds across a larger subscriber base.

Wideband 4.9 to 7.2 GHz

Broader Frequency Range

Wideband 6 GHz Asymmetrical 90° Horn Antenna with N Connectors for Telrad BreezeAIR AXE offers WISPs greater flexibility to move away from noisy or interference-prone channels by providing access to a broader frequency range (4.9 to 7.2 GHz). With more channels to choose from, especially in the 6 GHz band, WISPs can easily switch to cleaner, less congested frequencies, improving network reliability and performance. This is particularly beneficial in areas where the 5 GHz band is overcrowded, giving providers more options to deliver consistent, high-quality service to their customers.

Improved Performance and Reliability

The enhanced performance of theWideband 6 GHz Asymmetrical 90° Horn Antenna with N Connectors for Telrad BreezeAIR AXE in terms of signal strength and stability is ideal for line-of-sight applications, where it excels in providing reliable, high-quality service. In clear line-of-sight conditions, this antenna can deliver higher data rates and more stable connections, maximizing network efficiency and ensuring consistent service. For WISPs, this means better coverage, fewer disruptions, and improved customer satisfaction in areas where line-of-sight connections are achievable.

Flexibility and Scalability

The flexibility offered by the Wideband 6 GHz Asymmetrical 90° Horn Antenna with N Connectors for Telrad BreezeAIR AXE is significant for WISPs planning to scale their operations or adapt to changing regulatory environments. As regulations evolve and new spectrum bands become available for unlicensed use, having equipment that can operate over a wide range of frequencies means WISPs can adapt more easily without needing to replace their existing infrastructure. This adaptability is especially important in the rapidly evolving telecommunications landscape.

Competitive Advantage

For unlicensed WISPs, using superior technology like Wideband 6 GHz Asymmetrical 90° Horn Antenna with N Connectors for Telrad BreezeAIR AXE can provide a competitive edge. In an industry where service quality can be a major differentiator, the ability to offer faster, more reliable internet service can help WISPs attract and retain customers.

International Implications

Most Wi-Fi routers in the USA operate between 5.15 and 5.85 GHz, which are the available frequencies. However, internationally, WISPs can operate outside those frequencies, allowing them to avoid noise, interference, and congestion on the crowded 5 GHz Wi-Fi band.WISPs around the world can benefit from our Wideband 6 GHz Asymmetrical 90° Horn Antenna with N Connectors for Telrad BreezeAIR AXE, as different countries have varying regulations on unlicensed spectrum use. By covering a broader frequency range, our antennas offer greater flexibility, allowing WISPs to adapt to different regulatory environments. This versatility ensures that WISPs can maximize their available spectrum in international markets, providing reliable service no matter where they operate.

High Quality Antennas for WISPs

Network Reliability

To ensure network reliability, several key antenna parameters are essential. High antenna gain allows WISPs to focus signal energy in specific areas, reducing interference and improving stability as the network expands. A high front-to-back ratio minimizes interference from behind the antenna, leading to clearer signals and fewer disruptions, ensuring consistent performance even as subscriber numbers grow. Maintaining a low VSWR ensures efficient signal transmission, reducing errors and enhancing overall network stability as capacity demands increase. Additionally, high port isolation reduces interference between antenna ports, enabling cleaner signals and higher throughput, allowing WISPs to scale their networks while maintaining service quality and reliability across a larger number of connected devices.

Customer Satisfaction and Retention

Customer satisfaction and retention are driven by key antenna features that ensure a reliable network experience. High antenna gain focuses signal energy in specific areas, reducing interference and delivering consistent coverage, which improves user experience as the network grows. A high front-to-back ratio reduces interference from unwanted signals, leading to fewer disruptions and smoother service, ensuring subscribers remain satisfied with their connection. Low VSWR enhances signal efficiency, reducing errors and maintaining stable performance even during peak usage. Finally, high port isolation minimizes interference between ports, resulting in faster, more reliable connections, helping WISPs retain customers by consistently delivering high-quality service as the network scales.

More Successful Installs

Key antenna features contribute to a higher success rate of installations by ensuring more customers meet the minimum signal requirements. High antenna gain focuses the signal where it's needed, improving coverage and reducing interference, which helps more potential customers fall within the required service range. A high front-to-back ratio minimizes interference from unwanted signals, leading to clearer and stronger connections, making it easier to meet installation criteria. Low VSWR ensures efficient signal transmission, reducing errors and maintaining strong signals, which supports successful installations. High port isolation further reduces interference, allowing for reliable connections across a wider area, ultimately increasing the number of customers who meet the minimum install requirements for a WISP network.

Reduced Maintenance and Support Costs

Key antenna features contribute to lower maintenance costs and reduced total cost of ownership for WISPs. High antenna gain ensures stronger, more focused signals, reducing the need for costly troubleshooting and service visits due to weak or unreliable connections. A high front-to-back ratio minimizes interference, leading to fewer network issues and disruptions, which reduces ongoing maintenance efforts. Low VSWR improves signal efficiency, minimizing errors and retransmissions, which translates into fewer performance problems over time. High port isolation decreases interference between antenna ports, resulting in more reliable connections and less frequent network adjustments. Together, these factors enhance network stability, reducing the need for maintenance and lowering overall operational costs.

Improved Customer Experience

High performance antennas greatly enhance the customer experience by ensuring stronger, more reliable connections. High antenna gain delivers focused signal strength, providing consistent coverage and reducing interruptions. A high front-to-back ratio minimizes interference from unwanted signals, resulting in fewer disruptions and a smoother internet experience. Low VSWR ensures efficient signal transmission, reducing errors and improving connection stability. High port isolation further enhances reliability by preventing interference between antenna ports, leading to faster, more stable service. These features collectively provide customers with a seamless, dependable internet experience, especially during high-demand activities like streaming, gaming, and video conferencing.

Consistent Performance

A good VSWR, like 1.6 or lower, usually indicates that the antenna system (including cables, connectors, and the antenna itself) is well-matched and functioning correctly. This means more consistent and reliable performance, which is vital for WISPs to provide stable internet connectivity to their customers.

Increased Coverage Area

High-performance antennas can significantly increase the coverage area of a wireless network by focusing signal strength and improving transmission efficiency. With higher antenna gain, these antennas direct more of the signal energy toward specific areas, allowing for stronger connections over greater distances. This results in better signal penetration, fewer dead zones, and more consistent performance across a broader area. Additionally, high-performance antennas often feature reduced side lobes and better front-to-back ratios, minimizing interference and signal degradation. By delivering more reliable connections to distant users, these antennas allow service providers to extend their coverage areas without the need for additional infrastructure, optimizing both network performance and cost efficiency.

Adaptability to Various Environments

High-performance antennas offer greater versatility across a variety of environments due to their ability to adapt to different conditions while maintaining strong, reliable connections. Their focused signal strength, high gain, and efficient signal transmission make them effective in both urban and rural areas, where obstacles, interference, and distance can vary significantly. In environments with heavy interference, high-performance antennas can minimize unwanted signals through enhanced front-to-back ratios and low side lobes, ensuring clearer transmission. In more open, rural environments, these antennas can extend coverage over greater distances with fewer dead spots. This adaptability allows service providers to deploy high-performance antennas in diverse settings, ensuring consistent, reliable performance across different terrains and network conditions.

Asymmetrical e-Plane horn antennas

Reduced Interference

By concentrating the signal in a particular direction, asymmetrical horns minimize interference with neighboring networks. This is crucial in unlicensed spectrum environments where multiple networks often operate in close proximity.

Cost-Effective

By providing more precise coverage, asymmetrical horns can reduce the need for additional access points or repeaters, leading to cost savings in equipment and maintenance.

Improved Signal Quality

The focused beam of an asymmetrical horn can lead to a higher signal-to-noise ratio, translating to better data rates and improved overall performance of the network.

Flexibility in Network Design

Asymmetrical horns allow for more tailored network designs. WISPs can efficiently cover areas with irregular shapes or challenging topographies, which might be difficult with symmetrical horns.

Ease of Deployment

Asymmetrical horns can be easier to align and deploy due to their directional nature. This makes the setup process quicker and less labor-intensive.

Better Client Experience

The focused coverage can lead to fewer dead zones and better connection stability for end users, leading to higher customer satisfaction.

Enhanced Coverage in Specific Directions

Compared to sector antennas and symmetrical horns, the Wideband 6 GHz Asymmetrical 90° Horn Antenna with N Connectors for Telrad BreezeAIR AXE offers more focused coverage along the azimuth plane, providing precise signal targeting where it's needed most. This makes it ideal for WISPs that need to deliver strong, reliable service to specific areas or communities, particularly in environments with challenging geography or dense interference. The focused azimuth coverage reduces signal overspill into unwanted areas, minimizing interference and improving overall network efficiency. Additionally, the asymmetrical design enhances signal strength in the intended direction, ensuring better performance for customers in targeted locations, which results in higher throughput and more stable connections. This antenna is a great solution for WISPs looking to optimize coverage and signal reliability while maintaining flexibility in deployment.

wb6-a90-n

5 & 6 GHz Asymmetrical Horn Antennas

Revolutionizing wireless communication

Experience the power of IsoHorn asymmetrical horn antennas, delivering an unparalleled asymmetrical beam shape that revolutionizes wireless communication. Our cutting-edge asymmetrical horn antennas offer exceptional noise rejection, remarkable network scalability, and a significant boost in throughput. With their distinctive beam shape, increased antenna gain, and outstanding noise immunity, these antennas are the perfect complement to our highly acclaimed symmetrical horn antennas. Trust IsoHorn to elevate your wireless connectivity to new heights of performance and reliability!

Efficient wireless coverage

Discover the groundbreaking IsoHorns asymmetrical horn antennas, featuring a truly unique beam shape that sets them apart from the competition. With an elliptical cross-section in the bore sight, our antennas provide a wide azimuth and a narrow elevation plane, delivering unparalleled coverage in various deployment scenarios. Trust IsoHorns to elevate your wireless connectivity experience, harnessing the power of asymmetrical beam shaping to achieve exceptional performance and coverage like never before!

Upgrade your tower PtMP antenna infrastructure with cutting-edge horn antennas designed to support the full 5 GHz and 6 GHz frequency ranges, spanning from 4.9 GHz to 7.2 GHz. These advanced horn antennas offer optimal performance, versatility, and long-range wireless connectivity for a wide variety of applications, including WISP networks, wireless fronthaul, and rural broadband access.

Key features of these state-of-the-art horn antennas include:

  • Wide frequency range support (4.9 GHz to 7.2 GHz)
  • High isolation and low side lobes for reduced interference
  • Superior beamforming capabilities for enhanced signal quality
  • Exceptional durability and weather resistance for outdoor use
  • Improved network capacity and scalability for growing demands
  • Seamless integration with existing wireless infrastructure
  • Enhanced spectral efficiency for higher throughput and lower latency
  • Easy installation and maintenance for cost-effective deployment
  • Flexible mounting options for tower, rooftop, or pole installations
  • Future-proof design for compatibility with next-generation wireless technologies

Invest in the Future

Invest in these innovative 5 GHz and 6 GHz horn antennas to stay ahead of the competition and meet the growing needs of your wireless network. By embracing the latest antenna technology, you can provide reliable, high-speed internet connectivity to a diverse range of clients, from residential users to businesses and enterprises.

Everything Included

IsoHorns simplifies antenna setup by including the N connector male pigtail cables necessary to connect to most Telrad, Cambium, MikroTik, Proxim, and Radwin radios. Each antenna includes all necessary cables and mounting plates, removing problems with part delays or missing components. Our all-in-one solution streamlines installation, saving time and avoiding frustration. Whether setting up a new WISP or migrating your 5 GHz infrastructure, IsoHorns provides everything you need for a seamless installation experience.

Industry standard N connectors

N female (outside threading) connectors are widely used by radio manufacturers like Ubiquiti, Cambium, MikroTik, Mimosa, and Ligowave, making our antennas with N male (inside thread) connectors. This universality ensures that customers can easily integrate the horn antenna with existing systems and devices without the need for special adapters or modifications. For Radwin, you will need an N-type

Durability and Reliability

N connectors are known for their durability and reliability. They are designed to withstand repeated use and can maintain a stable connection even in environments where they may be subjected to physical stress, like vibrations or movements. This is crucial for ensuring consistent performance of the horn antenna over time.

Ease of Installation

N connectors are relatively easy to install and disconnect, making the setup and maintenance of the horn antenna more straightforward. This user-friendly aspect can be a significant selling point for customers who prefer a hassle-free installation process.

High Performance

These connectors are engineered to provide excellent electrical performance, particularly in terms of impedance matching and low signal loss. This is essential for maintaining the integrity of the signal transmitted or received by the horn antenna, which is critical for applications requiring high precision and efficiency.

Wide Frequency Range

N connectors are suitable for a wide range of frequencies, which makes them versatile for different types of horn antennas. This versatility is beneficial for vendors as it allows them to cater to a broader range of customer needs and applications.

Cost-Effective

Being an industry standard, N connectors are generally more cost-effective compared to proprietary or less common connector types. This can be a crucial factor for customers who are mindful of their budget without compromising on quality and performance.

Customization and Flexibility

The use of standard connectors like N gives the vendor the flexibility to offer customizable solutions to their customers. It allows for easy integration with other components or systems, thereby expanding the potential applications of the horn antenna.

Industry standard

Using industry-standard N connectors for horn antennas significantly reduces proprietary platform risks and vendor dependency of RF elements TwistPort waveguide adapters. This ensures that customers are not locked into a specific vendor's ecosystem, providing them with greater flexibility and control over their equipment choices. By opting for these universal connectors, customers benefit from a wider range of compatible devices and components, allowing them to select from various vendors based on price, performance, or preference. This approach promotes competition, potentially leading to better pricing and innovation, while also ensuring that the customers are not at the mercy of a single vendor for future updates, replacements, or expansions. It's a smart choice for those seeking both reliability and independence in their technology solutions.

Die cast aluminum

WISPs can scale affordably and reliably using horn antennas manufactured through aluminum die casting. This method involves forcing molten metal under high pressure into a mold cavity formed by two machined, hardened tool steel dies. Die casting produces complex metal parts with high precision and smooth finishes, making it ideal for horn antenna production at scale.

IsoHorns is the premier manufacturer of high-quality wideband horn antennas designed specifically for Wireless Internet Service Providers (WISPs) operating in both the 5 GHz and 6 GHz frequency bands. Our innovative, state-of-the-art horn antennas provide standalone performance, reliability, and durability, making them the top choice for WISPs around the world.


As a leader in the wireless communications industry, we understand the challenges faced by WISPs in deploying and maintaining efficient, high-performance networks. Our IsoHorns antennas are designed to address these challenges, offering unequaled benefits such as:

Wideband

High gain and directivity for maximum coverage

Low sidelobe levels to minimize interference

Robust construction for long-lasting durability

Easy integration with various wireless technologies

By choosing IsoHorns, you are investing in a solution that will revolutionize your network performance and help you stay ahead of the competition.
